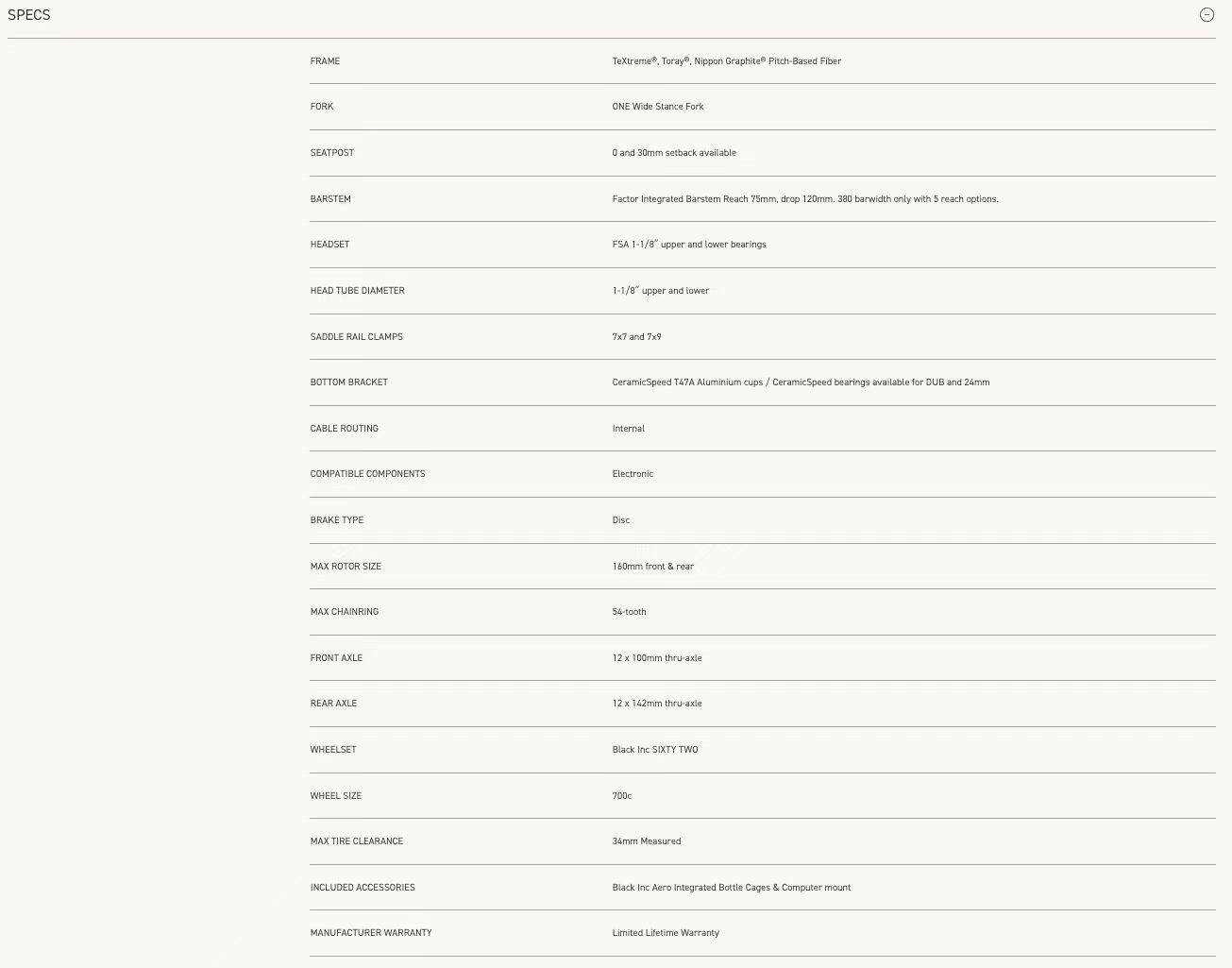

技术规格
车架TeXtreme®、Toray®、Nippon Graphite® 沥青基碳纤维
前叉ONE Wide Stance Fork
座管提供 0mm 和 30mm 后移量可选
弯把组Factor 一体化弯把组 Reach 75mm, Drop 120mm, 380mm 宽度仅搭配 5 号 Reach
碗组FSA 1-1/8" 上下轴承
头管直径1-1/8" 上下
座管夹7x7 和 7x9
中轴CeramicSpeed T47A 铝合金杯 / CeramicSpeed 轴承适配 DUB 和 24mm
走线方式全内走线
兼容套件电子变速
刹车类型碟刹
最大碟片前 160mm / 后 160mm
最大齿盘54T
前轴12 x 100mm 桶轴
后轴12 x 142mm 桶轴
轮组Black Inc SIXTY TWO
轮径700c
最大胎宽实测 34mm
随附配件Black Inc Aero 一体式水壶架 & 码表架
质保有限终身质保

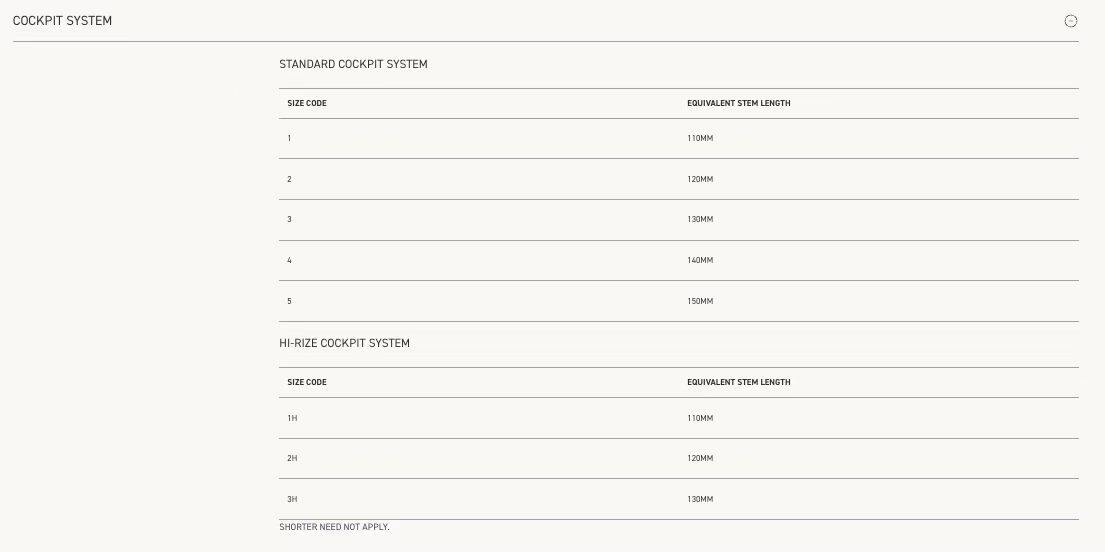

COCKPIT SYSTEM
Standard Cockpit System
SIZE CODEEQUIVALENT STEM LENGTH
1110mm
2120mm
3130mm
4140mm
5150mm
Hi-Rize Cockpit System
SIZE CODEEQUIVALENT STEM LENGTH
1H110mm
2H120mm
3H130mm
Shorter need not apply.

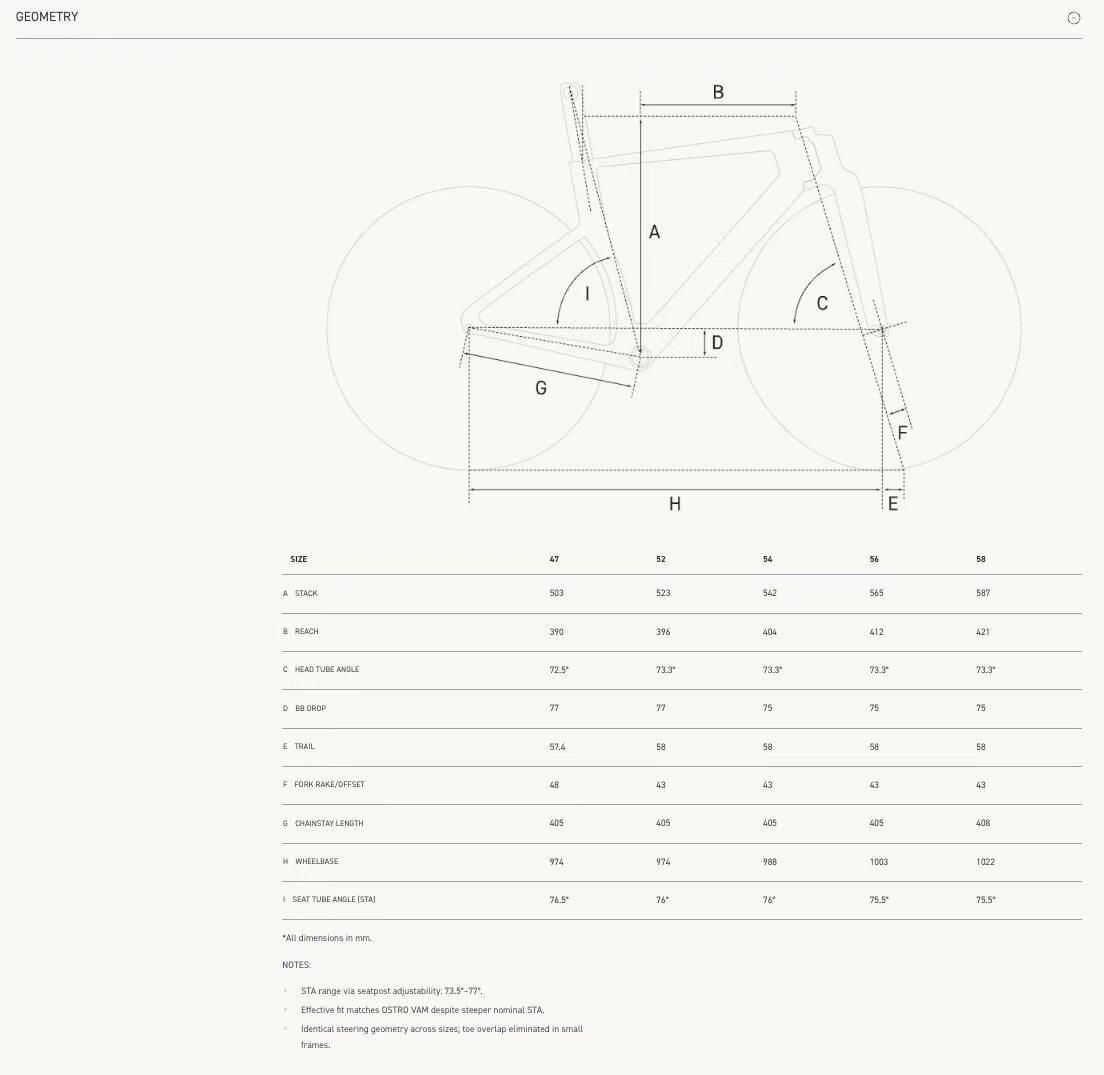

GEOMETRY
| SIZE | 47 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| A. STACK | 503 | 523 | 542 | 565 | 587 |
| B. REACH | 390 | 396 | 404 | 412 | 421 |
| C. HEAD TUBE ANGLE | 72.5° | 73.3° | 73.3° | 73.3° | 73.3° |
| D. BB DROP | 77 | 77 | 75 | 75 | 75 |
| E. TRAIL | 57.4 | 58 | 58 | 58 | 58 |
| F. FORK RAKE/OFFSET | 48 | 43 | 43 | 43 | 43 |
| G. CHAINSTAY LENGTH | 405 | 405 | 405 | 405 | 408 |
| H. WHEELBASE | 974 | 974 | 988 | 1003 | 1022 |
| I. SEAT TUBE ANGLE (STA) | 76.5° | 76° | 76° | 75.5° | 75.5° |
*All dimensions in mm.
NOTES:
- STA range via seatpost adjustability: 73.5°–77°.
- Effective fit matches OSTRO VAM despite steeper nominal STA.
- Identical steering geometry across sizes; toe overlap eliminated in small frames.
为竞赛而生
升级您的座驾

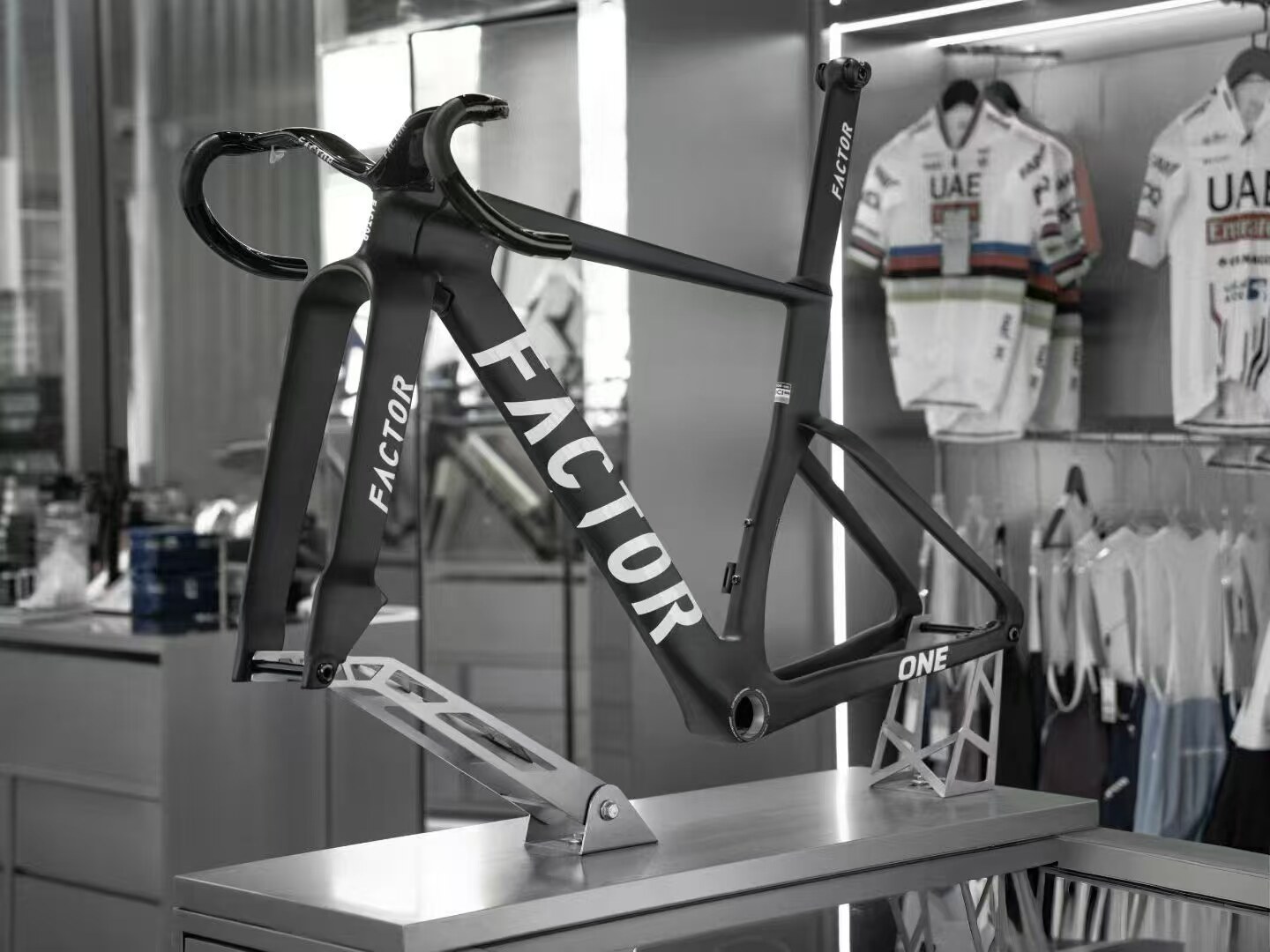

Factor ONE 旗舰公路车架，融合尖端空气动力学与极致轻量化，为追求极致性能的骑行者而生。
